適用范圍 Application
1、適用于1區、2區危險場所;
2、適用于ⅡA、ⅡB類．溫度組別為T1～T6的
3、爆炸性氣體環境。
1、Canbe used in hazardous areas:Zone 1 and Zone 2．
2、Can he used in explosive gas atmospheres of
3、Calegory ⅡAand ⅡB where the temperature classifieation is T1～T6．
型號含義 Model implication
主要技術參數 Main technical parameters
1、執行標準：GB3836.1-2000、GB 3836.2-2000、lEC60079
2、防爆標志：ExdⅡBT6
3、額定電壓：AC220V/50Hz
4、防護等級：IP54
5、防腐等級：WF1
6、引人口規格：G1/2”
7、電纜規格：Φ6mm～Φ10mm
8、配裝光源及功率：T5節能燈管
1×36W、1×28W、1×14W、1×8W、
2×36W、2×28W、2×14W、2×8W
9、單、雙管帶應急功能參數：充電時間24h
應急起動時間0.3s
應急照明時間90min
1、Implementing the standard：GB 3836.1-2000, GB 3836.2-2000，IEC60079
2、Explnsion-proof mark：ExdlIBT6
3、Rated voltage：AC220V/50Hz
4、Protection grade：IP54
5、Corrosion-pmof grade：WF1
6、Inlet spec：G1/2"
7、Cable spee: Φ6mm~Φ10mm
8、Applicable illuminant and power：Bi-pin lamp tube
1×36W，1×28W，1×14W，1×8W，
2×36W，2×28W，2×14W，2×8W
9、Parameter of the one with emergency function：
Charging time 24 h
Emergency starting time 0.3s
Emergency illuminating time 90 min
產品特點 Features
1、殼體采用鋁合金精密壓鑄成型，表面高壓靜電噴塑；
2、新式結構便于更換燈管，只需擰下端蓋，抽出燈管即可進行更換；
3、節能燈管經國家檢測中心測試節能39.53％；
4、采用電子鎮流器，裝于燈架內，功率因數高達95％以上；
5、應急電源為免維護隔鎳電池組；
6、應急裝置在正常條件下自動充電．?dāng)嚯姇r(shí)應急燈自動點亮；
7、鋼化玻璃燈罩．不銹鋼外露緊同件；
8、鋼管或電纜布線。
1、The housing is die cast in aluminum alloy，with high voltage static plastic-sprayed surface．
2、Convenience in changing the tube，only ln remove the end cover and tube．
3、The energy-saving lamp tube can save energy as high as 39.53％ under the test hy national inspection＆test center；
4、It adopts electronic ballast that is mounted in the lamp bracket， the power factor is higher than 95％;
5、The emergency power is provide by maintcnantce-free Cd-Ni haltery．
6、Emergency device is automatically charged under normal conditions，the emergency lamp goes on automatically once power is cut off;
7、Lampshade of tempered glass, stainless exposed fastener．
8、Conduit wiring or cable wiring．

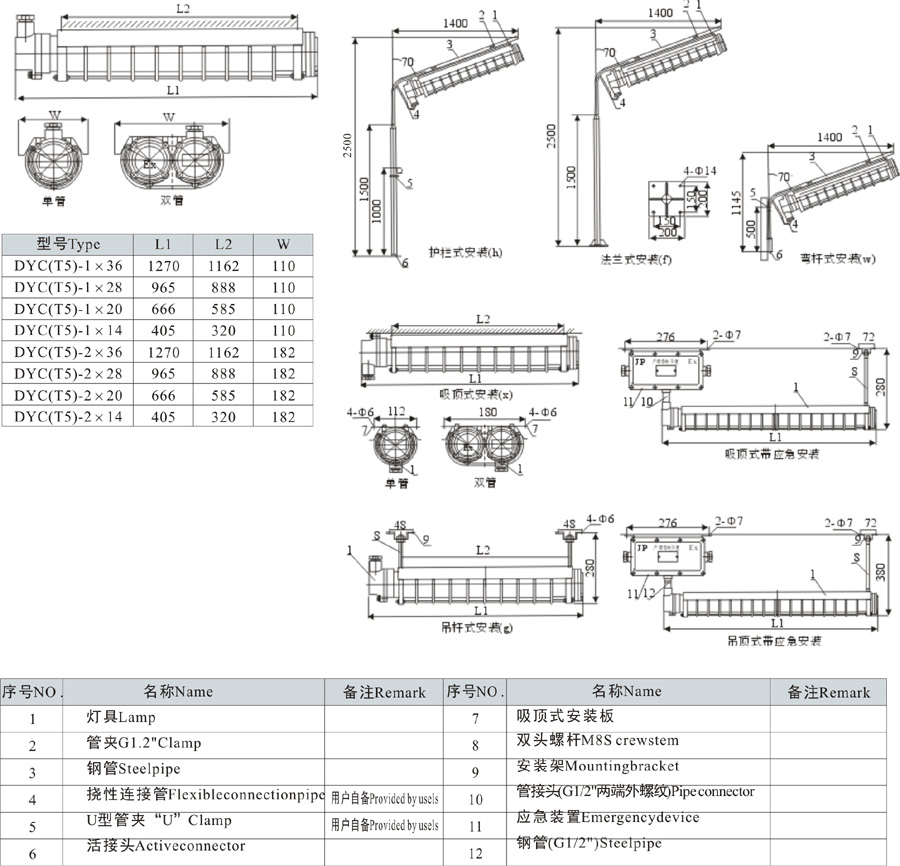

外形及安裝舉例 Outline and mounting example
訂貨須知 Ordering references
按產品型號說明逐條選擇，例：需要T5節能燈管2X36W，護欄式安裝，則產品型號為DYC(T5)-2×36h；
帶應急裝置的DYC(T5)系列隔爆型防爆節能熒光燈，只有吸頂式和吊桿式兩種安裝方式。
Select item by item according to description of product model，for example，ifyou require hi-pin lamp pipe of2X36W，fence type installation，the product model shall be DYC(T5)-2X36h；
With emergency derice DYC(T5)type flame-proof explosion-proof fluorescent lamp of mounting mode are ceiling and pendant．
